BeltCurve.com offers C-radius baggage curves, FedEx Spec 14016 and UPS PWT specs
New Belt Curves to FedEx and UPS Spec
The following pricelist will guide you through the purchase process. Quotations for standard spec curves will be available for download soon.

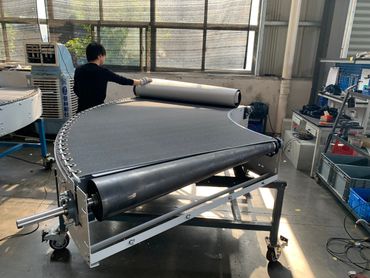

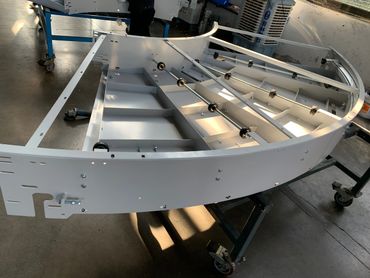

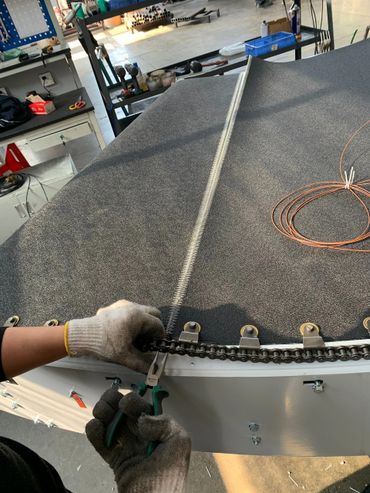

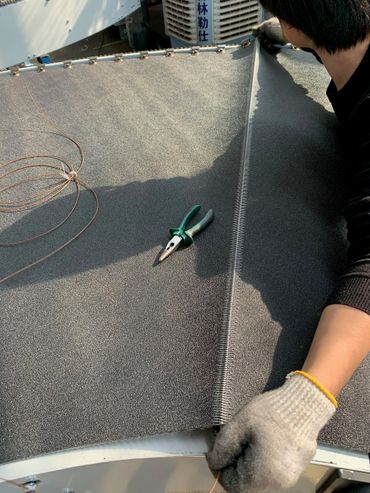

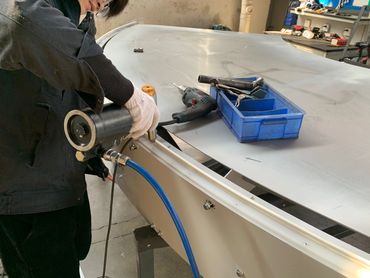

Photos of a new parcel specification curve being fabricated
Menu / Price List
FedEx Ground Curves - approval pending
New curves for FedEx sort systems built to Specification 14016.
96HS49-F90
$ 0.00
96" inside radius, 49" between sideguards
96HS61.5-F90
$ 0.00
96" inside radius, 61.5" between sideguards
60HS43-F90
$0.00
60" inside radius, 43" between sideguards
60HS49-F90
$0.00
60" inside radius, 49" between sideguards
UPS Curves - approval pending
New curves for UPS sort systems built to drawings PWT-04, PWT-06 and PWT-09
PWT-04 98.5HS61.5-BF90
$0.00
2.5 meter / 98.5" inside radius 61.5" conveying width bulk flow curve
PWT-06 59HS43-F90
$0.00
1.5 meter / 59" inside radius 43" conveying width curve
PWT-06 59HS49-F90
$0.00
1.5 meter / 59" inside radius 49" conveying width curve
PWT-06 59HS61.5-F90
$0.00
1.5 meter / 59" inside radius 61.5" conveying width curve
PWT-09 78.5HS43-F90
$0.00
2.0 meter / 78.5" inside radius 43" conveying width curve
PWT-09 78.5HS49-F90
$0.00
2.0 meter / 78.5" inside radius 49" conveying width curve
PWT-09 78.5HS61.5-F90
$0.00
2.0 meter / 78.5" inside radius 61.5" conveying width curve
All curves are configured to meet FedEx and UPS requirements.
